Part No. 21140

Part No. 21140

21140

$25.95 USD
$25.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame Alternator housing

For: Delco CS144 Series Alternators

Used On: (1999-91) Buick, Cadillac, Chevrolet, Chevrolet Truck, GMC Truck, Oldsmobile, Pontiac

Replaces: Delco 10471339, D3463

Unit Nos: Delco 1101590, 1101844
1102605, 1102616, 1102625
10479891, 10479966
10480010, 10480011, 10480018, 10480022, 10480023, 10480026, 10480033, 10480034, 10480111, 10480120, 10480171, 10480201, 10480203, 10480269

Lester Nos: 7678, 7684, 7984, 7985, 8112, 8136, 8172, 8183, 8191, 8192

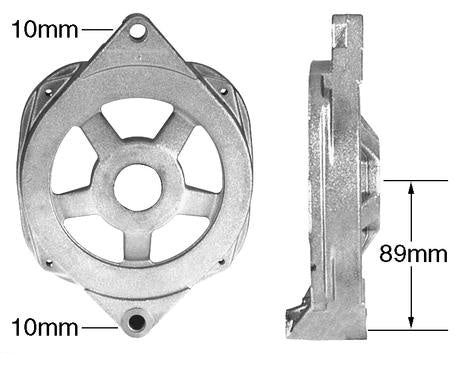

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 20mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 144mm

Notes: Used w/ 6303 ball bearing
