Part No. 211461

Part No. 211461

211461

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame w/ Bearing

For: Delco CS130 Series IR/EF Alternators

Used On: (1996-92) Buick, Chevrolet, GMC, Oldsmobile, Pontiac

Replaces: Delco 10476236

Unit Nos: Delco 1101110, 1101111, 10480055, 10480069, 10480082, 10480084, 10480086, 10480087, 10480094, 10480097, 10480099, 10480104

Lester Nos: 7861, 7921, 8165, 8189

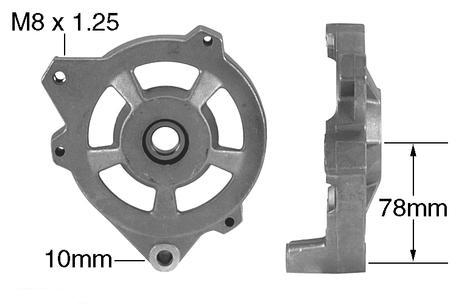

Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 126mm

Notes: Includes 6-303-4 ball bearing. Requires 46-1618 rotor spacer.

Also consider:
21-146 D.E. Frame, wo/ Bearing
46-1618 Rotor Spacer
