Part No. 21148

Part No. 21148

21148

$19.95 USD
$19.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame

For: Delco CS130 Series IR/EF Alternators

Used On: (1995-93) Chevrolet, Pontiac

Replaces: Delco 10474599*, 10477537

Unit Nos: Delco 1101644*, 10480157

Lester Nos: 8114, 8217

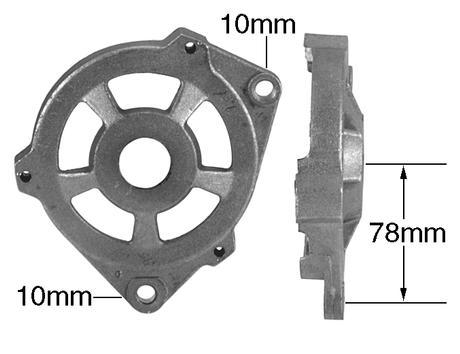

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 14mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia.: 47mm
Stator Bore Dia.: 126mm

Notes:
Used w/ 6303 bearing, requires 46-1570 bearing retainer, 46-1618 rotor spacer.
*21-148 replaces OE D.E. frame w/ 6203 bearing.

Also consider:
21-148-1 D.E. Frame, w/ Bearing
46-1570 Bearing Retainer
46-1618 Rotor Spacer
