Part No. 211481

Part No. 211481

211481

$43.66 USD
$43.66 USD
Sale Sold out
Shipping calculated at checkout.

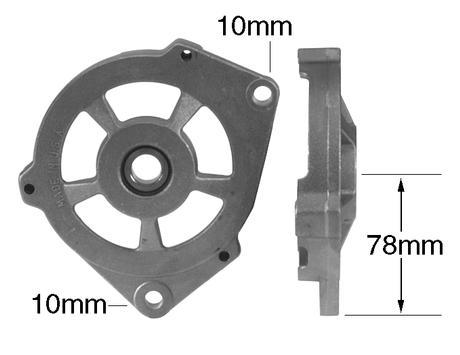

D.E. Frame w/ Bearing

For: Delco CS130 Series IR/EF Alternators

Used On: (1995-93) Chevrolet, Pontiac

Replaces: Delco 10474599*, 10477537

Unit Nos: Delco 1101644*, 10480157

Lester Nos: 8114, 8217

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 14mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 126mm

Notes:
Includes 6-303-4 ball bearing. Requires 46-1618 rotor spacer.
*21-148-1 replaces OE D.E. frame w/ 6203 bearing

Also consider:
21-148 D.E. Frame, wo/ Bearing
46-1618 Rotor Spacer
