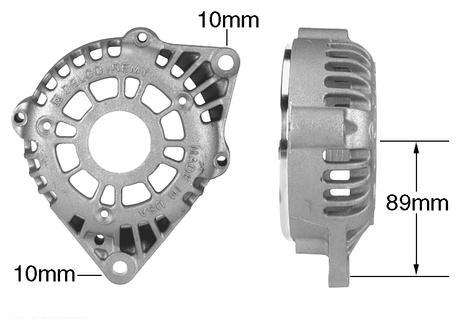

Part # 21153 - Alternator Frame, DE (Drive End) Front Housing with 10:00, 10mm Mounting Ear, 6303 Bearing Not Included

Part # 21153 - Alternator Frame, DE (Drive End) Front Housing with 10:00, 10mm Mounting Ear, 6303 Bearing Not Included

21153

$41.91 USD
$41.91 USD
Sale Sold out
Shipping calculated at checkout.
D.E. (Drive End) Front Housing Frame

For: Delco CS130D Series Alternators

Used On: (1999-93) Buick, Chevrolet, Oldsmobile, Pontiac

Unit Nos: Delco 10480052, 10480071, 10480119, 10480195, 10480196, 10480217, 10480233, 10480235, 10480236, 10480237, 10480238, 10480259, 10480263, 10480353

Lester Nos: 8155, 8156, 8222

WAI Ref Nos: 1-1797-01DR, 1-1797-02DR, 1-1799-01DR, 1-1799-02DR, 1-2068-01DR

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 14mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes: Used w/ 6303 ball bearing & 46-1510 bearing retainer.
