Part No. 21155

Part No. 21155

21155

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame

For: Delco CS130D Series IR/IF Alternators

Used On: (2002-94) Chevrolet, GMC, Isuzu, Oldsmobile

Unit Nos: Delco 10479981, 10479984, 10480017, 10480072, 10480187, 10480188, 10480189, 10480190, 10480252

Lester Nos: 8160, 8233

WAI Ref Nos: 1-1802-21DR, 1-1802-31DR, 1-1802-42DR, 1-2175-31DR

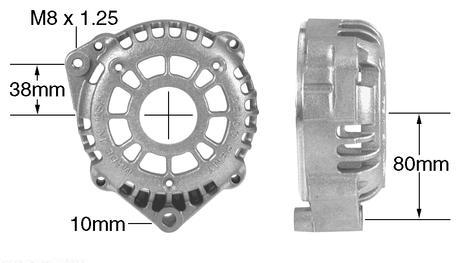

Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 80mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes: Used w/ 6303 ball bearing & 46-1510 bearing retainer.
