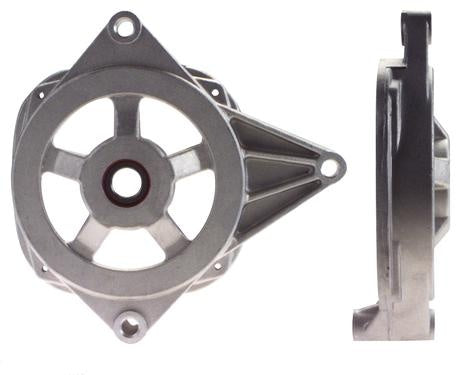

Part No. 21156 - note:same as #211561 but this housing DOES NOT have the 6303 bearing in the housing as the picture shows

Part No. 21156 - note:same as #211561 but this housing DOES NOT have the 6303 bearing in the housing as the picture shows

21156

$27.95 USD
$27.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame

For: Delco CS144 Series Alternators

Used On: (1999-95) Buick, Chevrolet, Oldsmobile, Pontiac

Replaces: Delco 10487578

Unit Nos: Delco 10480135, 10480186, 10480204, 10480205, 10480227, 10480278, 10480279, 10480363

Lester Nos: 8174, 8193, 8194, 8213

Dimensions:
Mtg. Ear-1 Hole Size: 10mm
Mtg. Ear-1 Thickness: 20mm
Mtg. Ear-2 Hole Size: 10mm
Mtg. Ear-2 Thickness: 22mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 144mm

Notes: Used w/ 6303 ball bearing

Also consider:
21-156-1 D.E. Frame w/ Bearing
