Part No. 211561 same as #21156 but this housing comes WITH the 6303 bearing installed

Part No. 211561 same as #21156 but this housing comes WITH the 6303 bearing installed

211561

$37.95 USD
$37.95 USD
Sale Sold out
Shipping calculated at checkout.

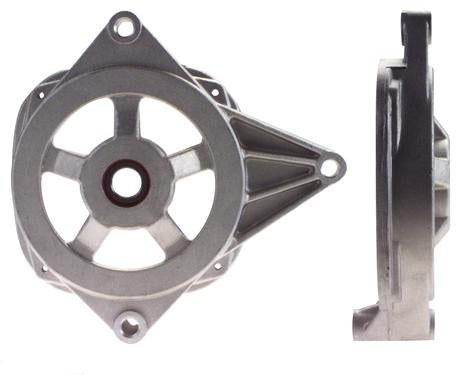

D.E. Frame with Bearing installed

For: Delco CS144 Series  Alternators

Used On: (1999-95) Buick, Chevrolet, Oldsmobile, Pontiac

Replaces: Delco 10487578

Unit Nos: Delco 10480135, 10480186, 10480204, 10480205, 10480227, 10480278, 10480279, 10480363

Lester Nos: 8174, 8193, 8194, 8213

Dimensions:
Mtg. Ear-1 Hole Size: 10mm
Mtg. Ear-1 Thickness: 20mm
Mtg. Ear-2 Hole Size: 10mm
Mtg. Ear-2 Thickness: 22mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 144mm

Notes: Includes 6-303-4 ball bearing
