Part No. 21158

Part No. 21158

21158

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.

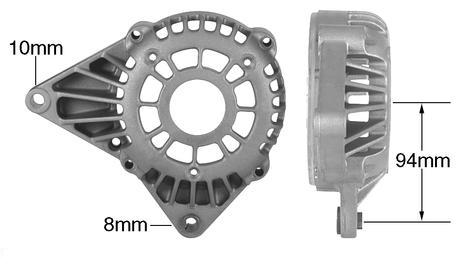

D.E. Frame

For: Delco CS130D Series IR/IF Alternators

Used On: (2002-95) Buick, Chevrolet, Oldsmobile, Pontiac

Unit Nos: Delco 10480182, 10480218, 10480240, 10480260, 10480262, 10480264, 10480301, 10480307, 10480351, 10480354, 10480378

Lester Nos: 8200, 8224

WAI Ref Nos: 1-1985-01DR, 1-2070-01DR, 1-2070-02DR, 1-2290-01DR

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 22mm
Mtg. Foot Hole Size: 8mm
Mtg. Foot to Bearing Center: 94mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes: Used w/ 6303 ball bearing & 46-1510 bearing retainer.

Components: 46-1565 Mounting Bushing
