Part No. 21160

Part No. 21160

21160

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame

For: Delco CS130D Series IR/IF Alternators

Used On: (2002-96) Chevrolet, Pontiac

Unit Nos: Delco 10480076, 10480078, 10480289, 10480321, 10480361

Lester Nos: 8199, 8208

WAI Ref Nos: 1-2019-11DR, 1-2043-11DR

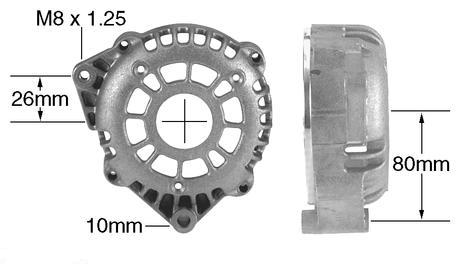

Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 80mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes: Used w/ 6303 ball bearing & 46-1510 bearing retainer.
