Part No. 21161

Part No. 21161

21161

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame

For: Delco CS130D Series 105A* IR/IF Alternators

Used On: (1999-96) Buick, Chevrolet, Oldsmobile, Pontiac

Unit Nos: Delco 10480079, 10480322

Lester Nos: 8197

WAI Ref Nos: 1-2020-01DR

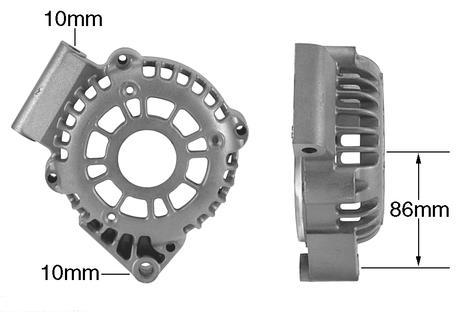

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 74mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 86mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes:
Used w/ 6303 ball bearing, 27-137 stator & 46-1510 bearing retainer.
*Stator bore depth 24.5mm. Similar to 21-172 except 21-172 has stator bore depth 25.5mm for 102 Amp alternators.
