Part No. 21168

Part No. 21168

21168

$43.95 USD
$43.95 USD
Sale Sold out
Shipping calculated at checkout.
Drive End Housing

For: Delco 33SI, 34SI Series  Alternators

Replaces: Delco 10491185

Unit Nos: Delco 19011150, 19011151, 19011152, 19011153, 19011154, 19011155, 19011156, 19011157, 19011158, 19011159, 19011160, 19011161, 19011162, 19011163, 19011165, 19011166, 19011167, 19011168, 19011169, 19011170, 19011171, 19011172, 19011173, 19011174, 19011175, 19011178, 19011179, 19011181, 19011182, 19011183, 19011186, 19011189, 19011190, 19011191, 19011192

Lester Nos: 8080, 8083, 8090, 8092

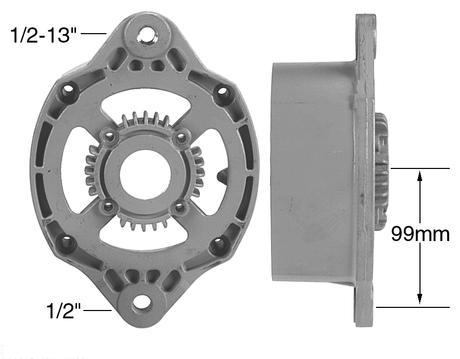

Dimensions:
Mtg. Ear Hole Size: 1/2-13
Mtg. Ear Thickness: 15mm
Mtg. Foot Hole Size: 1/2 in.
Mtg. Foot to Bearing Center: 99mm
Bearing Bore Dia.: 62mm
Stator Bore Dia.: 152mm
Thru-bolt Hole Size: 1/4 in.

Notes: Used w/ 6305 ball bearing. Similar to 21-110 (25SI, 26SI, 30SI Series) except 21-110 has #10 thru-bolt hole size
