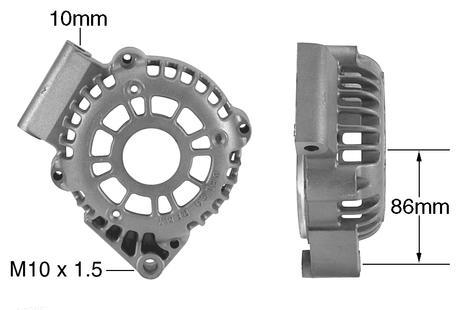

Part No. 21170

Part No. 21170

21170

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
D.E. Frame

For: Delco CS130D Series 102*A IR/IF Alternators

Used On: (2001-97) Chevrolet, Oldsmobile

Unit Nos: Delco 10480299, 10480317, 10480318

Lester Nos: 8230, 8249

WAI Ref Nos: 1-2135-01DR, 1-2222-01DR, 1-2322-01DR

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 74mm
Mtg. Foot Hole Size: M10 x 1.5
Mtg. Foot to Bearing Center: 86mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 25.5mm

Notes:
Used w/ 6303 ball bearing, 27-142 stator & 46-1510 bearing retainer.
*Stator bore depth 25.5mm. Similar to 21-182-1 except 21-182-1 has stator bore depth 24.5mm for 105 Amp alternators.
