Part No. 21171

Part No. 21171

21171

$43.66 USD
$43.66 USD
Sale Sold out
Shipping calculated at checkout.

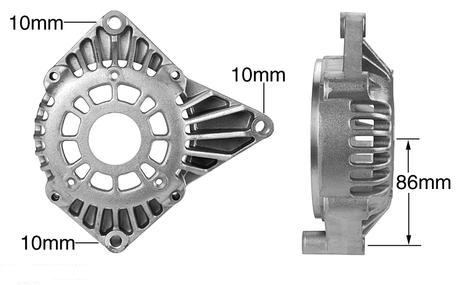

D.E. Frame

For: Delco CS130D Series IR/IF Alternators

Used On: (1998-97) Buick

Unit Nos: Delco 10480191, 10480250

Lester Nos: 8223

WAI Ref Nos: 1-2067-31DR

Dimensions:
Mtg. Ear Hole-1 Size: 10mm
Mtg. Ear-1 Thickness: 20mm
Mtg. Ear Hole-2 Size: 10mm
Mtg. Ear-2 Thickness: 22mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm

Notes: Used w/ 6303 ball bearing & 46-1510 bearing retainer.
