Part No. 211741

Part No. 211741

211741

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

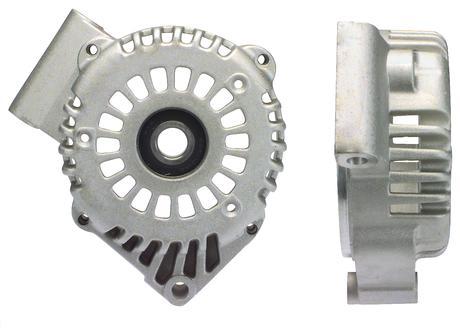

D.E. Frame w/ Bearing

For: Delco CS130D Series 102, 110A IR/IF Alternators

Used On: (2003-99) Buick, Chevrolet, Pontiac

Unit Nos: Delco 10437987, 10437988, 10480292, 10480330, 10480331, 10480346, 10480348, 10480352

Lester Nos: 8234, 8243

WAI Ref Nos: 1-2213-01DR, 1-2213-02DR, 1-2214-01DR, 1-2214-02DR

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 74mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 90mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 25.5mm

Notes: Includes 6-303-4 ball bearing.
