Part No. 211821

Part No. 211821

211821

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

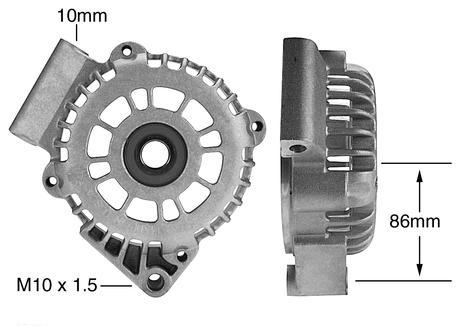

D.E. Frame w/ Bearing

For: Delco CS130D Series 105*A IR/IF Alternators

Used On: (2000-99) Oldsmobile, Pontiac

Unit Nos: Delco 10480332, 10480336

Lester Nos: 8230

WAI Ref Nos: 1-2135-01DR, 1-2322-01DR

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 74mm
Mtg. Foot Hole Size: M10 x 1.5
Mtg. Foot to Bearing Center: 86mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes:
Includes 6-303-4 ball bearing. Used w/ 27-137 stator.
*Stator bore depth 24.5mm. Similar to 21-170-1 except 21-170-1 has stator bore depth 25.5mm for 102 Amp alternators.
