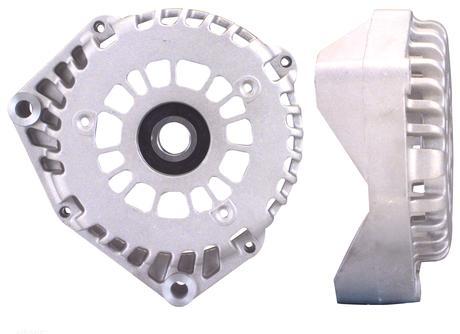

DE Frame with Bearing and 6mm Stator Bore for AD244 Series Alternators
DE Frame with Bearing and 6mm Stator Bore for AD244 Series Alternators
SKU:211851
$0.00 USD
$53.85 USD
$0.00 USD
Sale price
$53.85 USD
Shipping calculated at checkout.
Couldn't load pickup availability
| 118D.E. Frame w/ Bearing For: Delco AD244 Series IR/IF Alternators Used On: (2005-01) Chevrolet, GMC Unit Nos: Delco 15750871 Lester Nos: 8237 WAI Ref Nos: 1-2419-21DR Dimensions: Mtg. Ear Hole Size: 10mm Mtg. Ear Thickness: 51mm Mtg. Foot Hole Size: 10mm Mtg. Foot to Bearing Center: 89mm Bearing Bore Dia: 47mm Stator Bore Dia: 144mm Stator Bore Depth: 6mm Notes: Includes 6-303-4 ball bearing. Similar to 21-179-1 except 21-179-1 has 4mm stator bore depth. Also consider: 21-179-1 D.E. Frame, 4mm Stator Bore Depth |
