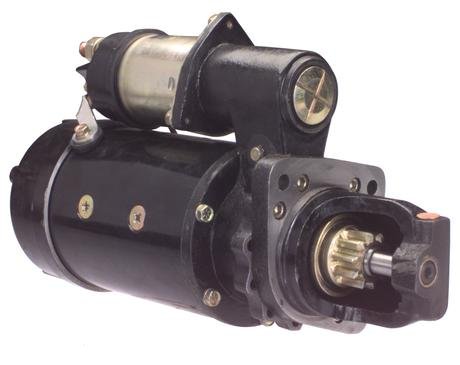

6504NPT - Starter, Delco 37MT

Starter - Delco type 37MT Heavy Duty Positive Engagement 12 Volt, CW, 10-Tooth Pinion, w/ Thermostat

Used On: Blue Bird (1991-2000) ** Chevrolet (1990-2002) ** Ford (1995-1997) ** GMC (1990-2002)

Replaces: Bluebird Bus 4312666, Cummins 3675167RX, Delco 10461082, 10461094, 10461110, 10461152, 1993947, 1993950, 1993951, 1993994

Lester Nos: 6504, 6522

Dimensions: 1/2-13 C.E. Terminal

Notes: Field case w/ ground terminal stud. Solenoid positioned at 308 degrees.

Components: 51-1119 D.E. Housing 54-170 Positive Engagement Drive 61-143 Armature 62-1600 D.E. Bushing, 66-150 Solenoid

Features:
Ductile iron D.E. housing
Painted gloss black with zinc plated hardware
100% computerized load tested
100% New
Heavy duty positive engagement solution for 37MT starters
OCP (Overcrank protection)
Solenoid positioned at 308 degrees
Eliminates the milling and stop ring & collar failure common on the 37MT design
41MT positive engagement drive
41MT armature with heat treated shaft and welded steel-core riserless commutator
41MT solenoid, 100% tested for coil strength, voltage drop across contacts and 'reserve burnoff' on the contacts

Also consider:
61-143 Armature, 41MT 12 Volt
62-1600 D.E. Bushing
66-150 Solenoid

Reference No. 2-1582-DR-1
