Part # 3510NPG - TOP QUALITY MINI - Starter Hi-Performance Permanent Magnet PG260M 11-Tooth Pinion Used On GM V6 & V8 engines Lester # 3510

Part # 3510NPG - TOP QUALITY MINI - Starter Hi-Performance Permanent Magnet PG260M 11-Tooth Pinion Used On GM V6 & V8 engines Lester # 3510

3510NPG

$139.95 USD
$139.95 USD
Sale Sold out
Shipping calculated at checkout.

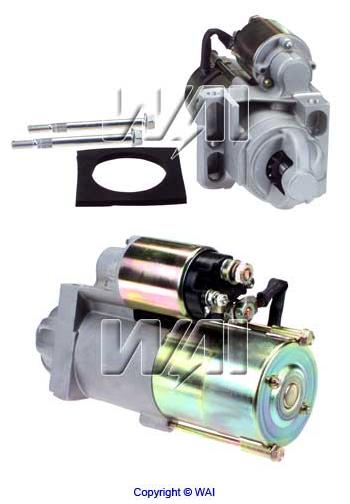

3510NPG - Starter - Hi-Performance PG260M 1.7kW/12 Volt, 11-Tooth Pinion

Used On: GM V6 & V8 Small Block or Big Block Engines w/ 168-Tooth Flywheel

Lester: 3510N-PG

Notes:
Upgrade the old, heavy 9-tooth, 10MT design to a high output, lightweight, 11-Tooth PG260M starter. Ideal for hi-performance, marine & street-rod applications.
2-1593-DR-2 has a 4-Terminal solenoid w/ relay & switch terminals.



Features:
100% New
1.7 kW high-performance retrofit
Mounting bolts and bell housing gasket included
4-terminal, sealed solenoid
Smaller and lighter, 7.7 lbs.
Hi-performance rare earth magnets are completely sealed from moisture & contaminants
Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position.
Zinc plated field case, solenoid, C.E. cover & hardware
Armatures are precision balanced & feature banded hairpins
Commutators are stake-welded & polished for longer brush life
Carbon brushes are welded - same as OE
Starter, drive & solenoid are endurance tested

Also consider:
21590DR2 Starter, PG260M, used on 153-Tooth Flywheel
21593DR Starter, SD300 (10MT) Design

Reference No. 2-1593-DR-2, 3510N-PG
