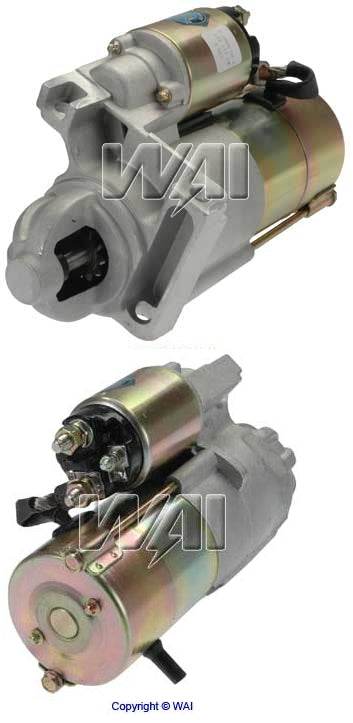

Part # 21688DR2 Delco-Remy type Starter that Replaces Delco 9000776, 9000797, 9000806, 9000863

Part # 21688DR2 Delco-Remy type Starter that Replaces Delco 9000776, 9000797, 9000806, 9000863

21688DR2

$119.95 USD
$119.95 USD
Sale Sold out
Shipping calculated at checkout.
-Starter - Delco PG260M Series
1.7kW/12 Volt, CW, 11-Tooth Pinion

Used On:
(2001-91) Buick Park Avenue 3.8L w/ Supercharger
(2001-97) Buick Regal 3.8L w/ Supercharger
(1999-95) Buick Riviera 3.8L
(1997-95) Chevrolet Camaro 3.8L
(1997-96) Chevrolet Lumina, Monte Carlo 3.4L
(1999-95) Oldsmobile 88 3.8L w/ Supercharger
(1995-92) Oldsmobile 98 3.8L w/ Supercharger
(1996) Oldsmobile Cutlass 3.4L
(2001-92) Pontiac Bonneville 3.8L w/ Supercharger
(1997-95) Pontiac Firebird 3.8L
(1996) Pontiac Grand Prix 3.4L
(2001-97) Pontiac Grand Prix 3.8L w/ Supercharger

Replaces:
Delco 9000776, 9000797, 9000806, 9000863

Lester: 6431, 6472, 6476

Notes:
2-1688-DR-2 PG260M series starter has M8 x 1.25 solenoid battery term. & 11-tooth drive but will replace Delco 9000776, 797 (Lester 6476, WAI-Ref. 2-1797-DR) PG250 series starters with M10 x 1.5 solenoid battery term. & 9-tooth drive.
For PG260L design use 2-2140-DR-2.
For PG260G design use 2-2111-DR-2.
For PG260E design use 2-2383-DR.

Features:
100% New
OE performance torque & output
OE interchangeable components, officially licensed & manufactured with Remy's patent-protected technology
Hi-performance rare earth magnets are completely sealed from moisture & contaminants
Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position.
Zinc plated field case, solenoid, C.E. cover & hardware
Armatures are precision balanced & feature banded hairpins
Commutators are stake-welded & polished for longer brush life
Carbon brushes are welded - same as OE
Starter, drive & solenoid are endurance tested

Also consider:
2-1688-DR-1 Starter, OE Supplier
2-2111-DR-2 Starter, PG260G Design
2-2140-DR-2 Starter, PG260L Design
2-2383-DR Starter, PG260E Design
71-1114 Gasket
84-1506 Mounting Bolt
84-1507 Mounting Bolt

Reference: 2-1688-DR-2, 6472N
