6-Groove Serpentine Pulley

Pulley - 6-Groove

For: Delco CS130 Series and other Alternators

Used On: (1998-86) Buick, Chevrolet, Oldsmobile, Pontiac

Replaces: Delco 10496580

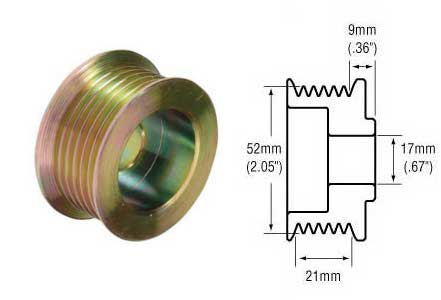

Dimensions: 21mm Belt x 52mm OD x 17mm Bore

Features: Machined pulley cut from cold rolled steel
Designed w/ hub - no pulley spacer required

WAI Part No. 24-1263
Dubois Part No. 191-061
D1-CS130-017
D1CS130017

Unit Numbers: Delco 10463007, 10463013, 10463016, 10463020, 10463021, 10463032, 10463049, 10463088, 10463091, 10463097, 10463116, 10463139, 10463170, 10463174, 10463176, 10463184, 10463323, 10463344, 10463370, 10463388, 10463411, 10463531, 10463532, 10463640, 10463643, 10464094, 10479895, 10479897, 10479902, 10479911, 10480025, 10480036, 10480037, 10480068, 10480136, 10480137, 10480172, 10480181, 10480265, 10497122, 1101101, 1101107, 1101127, 1101142, 1101143, 1101148, 1101149, 1101246, 1101344, 1101466, 1101467, 1101595, 1101603, 1101606, 1101810, 1102601, 1102602, 1102603, 1105678, 1105725; GM 10463007, 10463013, 10463016, 10463021, 10463032, 10463088, 10463097, 10463116, 10463139, 10463170, 10463174, 10463176, 10463184, 10463344, 10463370, 10463388, 10463411, 10463531, 10463532, 10463640, 10463643, 10464094, 10497122, 19152475

Lester: 7804-11, 7859-7, 7860-11, 7860-3, 7860-7, 7880-11, 7880-3, 7888-11, 7910-3, 7939-3, 8169-7, 8171-7, 8202-7, 8225-7

Detailed vehicle Application
