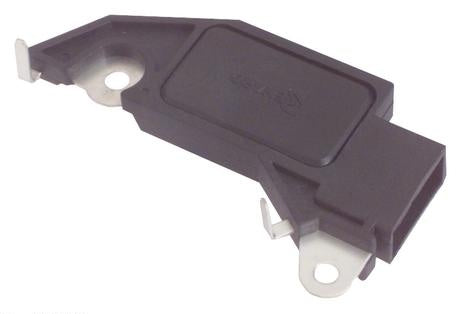

Part # 35122 (D445XHD)- Voltage Regulator 12 Volt, P-L-F-S, 14.8 Volt set point, 10 second delay. LRC For Delco CS121, CS130, CS144 Series Alternator

Voltage Regulator 12 Volt, P-L-F-S Terminals, 14.8 Voltage set point, 10 second delay. LRC

For: Delco CS121,CS130 CS144 Series Alternators
For Heavy Duty Version see: D445XHD Used On: (1997-88) Cadillac

Replaces: Delco 1116413, 1116430, D600A, D681 (regulator case stamped: 113, 130, 413, 430)

Unit Nos: Delco 1101294, 1101296, 1101350, 1101490, 1101518, 1101519, 1101578, 1101579, 1101847, 10479995, 10479996, 10480008, 10480009, 10480048, 10480116

Lester Nos: 7904, 7942, 7966, 7969, 8127, 8170

WAI Ref Nos: 1-1683-11DR, 1-1684-11DR, 1-1688-11DR, 1-1689-11DR, 1-1693-41DR, 1-1694-41DR, 1-1700-11DR

Notes: Used on applications w/ lamp fault indicator.

Features:
Full short-circuit protection of lamp & field circuits for increased protection
400 Hz field frequency provides tighter voltage regulation over varying loads & rpms
20A MOSFET field transistor for greater reliability
Low field-voltage drop (Vsat) for cooler operation & increased current capabilities
Low IC turn-on (less than 1 volt)
Load-dump protection
Soft start
Fail safe
Active laser-trimming for precise voltage setting
