Voltage Regulator

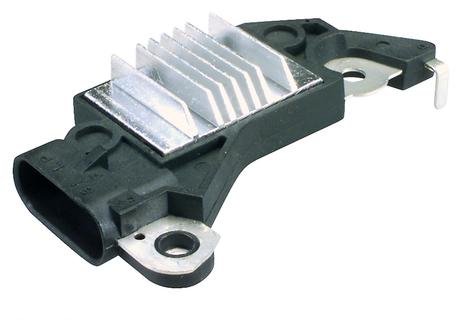

D705XHD Alternator Voltage Regulator 12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Voltage set point, 10 sec. LRC
May be used on CS130D alternators.
For: Delco CS130D Series Alternators

Used On: (95 & up) Buick, Chevrolet, GMC, Isuzu, Oldsmobile, Pontiac

Replaces: Delco 19009705, 19009729, 705, Delco ASVR 19009729, 19009763, Original Reference Number 9729

Unit Nos: Delco 10463605, 10463638, 10463639, 10463838, 10463839, 10463840, 10463842, 10463843, 10464069, 10464071, 10464072, 10464084, 10464085, 10464086, 10464087, 10464097, 10464401, 10464409, 10464410, 10464411, 10464418, 10464419, 10464420, 10464423, 10464431, 10464432, 10464433, 10480074, 10480076, 10480079, 10480184, 10480191, 10480207, 10480217, 10480218, 10480250, 10480251, 10480252, 10480254, 10480259, 10480260, 10480289, 10480299, 10480301, 10480307, 10480320, 10480321, 10480322, 10480332, 10480351, 10480353, 10480354, 10480361, 10480362, 15768315, 19244782, 19244786, 19244787, 19244794; GM 10463605, 10463638, 10463639, 10463839, 10463840, 10463842, 10464069, 10464071, 10464072, 10464084, 10464085, 10464086, 10464087, 10464097, 10464409, 10464411, 10464418, 10464419, 10464420, 10464423, 10464431, 10464432, 10464433, 10464458, 19244788; Isuzu 8104640840, 8104640850; Original Reference Number 10480351Y

Lester Nos: 8190-11, 8197-7, 8199-2, 8222-3, 8223-7, 8224-11, 8228-7, 8229-7, 8230-7, 8231-5, 8233-7, 8240-7, 8275-2, 8276-7, 8297

Notes: With temperature compensation. Used on vehicles w/ digital instrument cluster.

Features:
Welded construction - no solder joints for hi-temperature reliability & increased field life
Full short-circuit protection of lamp & field circuits for increased protection
400 Hz field frequency provides tighter voltage regulation over varying loads & rpms
20 Amp MOSFET field transistor for greater reliability
Low field-voltage drop (Vsat) for cooler operation & increased current capabilities
Low IC turn-on (less than 1 volt)
Load-dump protection
Soft start
Fail safe
Active laser-trimming for precise voltage setting
