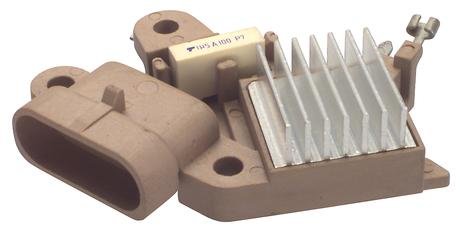

Part # 35162 - Voltage Regulator 12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Volt set point, 2.5 sec. LRC. For GM AD230, AD237, AD244 Series Alts.

Part # 35162 - Voltage Regulator 12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Volt set point, 2.5 sec. LRC. For GM AD230, AD237, AD244 Series Alts.

35162

$39.95 USD
$39.95 USD
Sale Sold out
Shipping calculated at checkout.
Regulator 12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC

For: Delco AD230, AD237, AD244 Series Alternators

Used On: (2005-99) AM General, Buick, Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile, Pontiac, Saab

Replaces: Delco 10483643, 10486311, 19053013, 19053730, 19054622 (regulator case stamped: 3013, 3643, 3730, 4622, 6311 or regulator & rectifier assy. stamped: 0821, 3642, 3741)

Unit Nos: Delco 10442782, 10442783, 10480231, 10480234, 10480285, 10480326, 10480327, 10480341, 10480383, 10480388, 10480390, 15062413, 15162839, 15744910, 15750871, 15754097, 15754097A, 15755616, 15766829, 15766830, 15768829, 15768830, 15788630, 25744162

Lester Nos: 8237, 8241, 8247, 8273, 8287, 8288, 8289, 8290, 8291, 8292

WAI Ref Nos: 1-2199-01DR, 1-2199-02DR, 1-2320-21DR, 1-2416-01DR, 1-2416-02DR, 1-2417-01DR, 1-2419-21DR

Features: Full short-circuit protection of lamp & field circuits for increased protection
400 Hz field frequency provides tighter voltage regulation over varying loads & rpms
20 Amp MOSFET field transistor for greater reliability
Low field-voltage drop (Vsat) for cooler operation & increased current capabilities
Low IC turn-on (less than 1 volt)
Load-dump protection
Soft start
Fail safe
Active laser-trimming for precise voltage setting
same as D200
