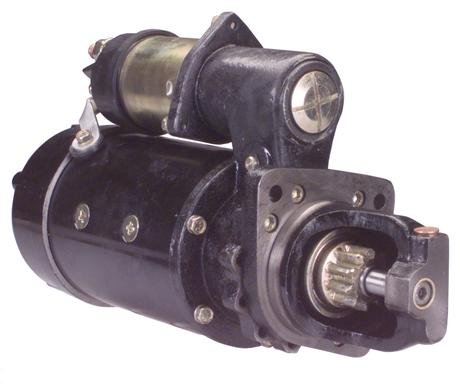

6505N-PT Delco HD Starter for 6.6L Diesel

6505N-PT Delco HD Starter for 6.6L Diesel

6505N-PT

$279.95 USD
$279.95 USD
Sale Sold out
Shipping calculated at checkout.
Starter - Delco 37MT Heavy Duty Positive Engagement 12 Volt, CW, 10-Tooth Pinion

Used On: Chevrolet, GMC Medium Duty Trucks w/ Cat 3116 Diesel 6.6L; Freightliner Medium Duty Trucks w/ Cat 3126 Diesel

Replaces: Delco 1993963, 10461081

Lester Nos: 6505

Dimensions: 1/2-13 C.E. terminal

Components: 51-1119 D.E. Housing, 54-170 Positive Engagement Drive, 61-143 Armature, 62-1600 D.E. Bushing, 66-146 Soleniod

Features: 100% New

Heavy duty positive engagement solution for 37MT starters
Eliminates the milling and stop ring & collar failure common on the 37MT design
41MT positive engagement drive
41MT armature with heat treated shaft and welded steel-core riserless commutator
41MT solenoid, 100% tested for coil strength, voltage drop across contacts and 'reserve burnoff' on the contacts
Varnish dipped field coils
Ductile iron D.E. housing
Painted gloss black with zinc-yellow plated hardware
100% computerized load tested

Also consider:
61-143 Armature, 41MT 12 Volt
62-1600 D.E. Bushing

Reference No. 50-194-1
