Starter Harness Kit

For: Ford PMGR Starters w/ Spade S-Terminal Solenoid when retrofitting Ford 4 in., 4-1/2 in. DD Starters

Used on: Ford (1985-2003) Lincoln (1989-1994) Mazda (1991-2001)

Replaces: Ford F2PU-11K162-AA, F2PZ-11K162-A

Unit Numbers: Ford 1416219, 81AB-11000-EB, 86AB-11000-HA, 86AB-11000-RA, 86AB-11000-VA, 91AB-11000-BA, 91AB-11000-BJ, 91AB-11000-EA, E9OF-11000-AA, E9OF-11000-BA, E9OY-11002-A, E9OY-11002-B, E9SF-11000-AA, E9SF-11000-BA, E9SZ-11002-A, E9SZ-11002-B, E9SZ-11002-BRM, F02F-11000-AA, F02U-11000-AA, F02Z-11002-A, F07U-11000-BA, F0OU-11000-AA, F0OY-11000-AA, F0OY-11002-A, F0OY-11002-ARM, F0TZ-11002-B, F0TZ-11002-BRM, F13U-11000-AA, F13Z-11002-A, F13Z-11002-ARM, F17U-11000-AB, F1TZ-11002-A, F1TZ-11002-ARM, F23U-11000-AA, F23U-11000-BC, F23Z-11002-A, F23Z-11002-ARM, F23Z-11002-B, F23Z-11002-BRM, F2DU-11000-AA, F2DU-11000-BA, F2DZ-11002-A, F2TU-11000-AA, F2TZ-11002-A, F2TZ-11002-ARM, F3DU-11000-AA, F3DZ-11002-A, F3DZ-11002-ARM, F4FU-11000-AA, F7PU-11000-FA, F7PU-11000-KA, F7PZ-11002-FA, F7PZ-11002-KA, F87U-11000-A1A, F87U-11000-A1B, F87U-11000-AA, F87Z-11002-AA, F87Z-11002-AARM, FO2Z-11002-A, FOOY-11002-A, FOOY-11002-ARM, FOTZ-11002-B, FOTZ-11002-BRM; Ford Engineering E9OF-AA, E9OF-BA, E9SF-AA, E9SF-BA, F02F-AA, F02U-AA, F07U-BA, F0OU-AA, F0OY-AA, F13U-AA, F17U-AB, F23U-AA, F23U-BC, F2DU-AA, F2DU-BA, F2TU-AA, F3DU-AA, F4FU-AA, F7PU-FA, F7PU-KA, F87U-A1A, F87U-A1B, F87U-AA, RM1U2J11000BA, RM4U2J11A230JA, RM4U2J11A230KA, RM4U2J11A230LA, RM4U2J11A230NA, RM4U2J11A230RA, RM4U2J11A230SA, RM4U2J11A230TA; JLG Industries 7012679, 7019986; Mazda ZZL1-18-400, ZZM0-18-400, ZZM1-18-400, ZZP1-18-400, ZZP1-18-400A, ZZP1-18-400R0A; Toyota 27060-96001

Lester: 3204, 3205, 3213, 3223, 3224, 3231, 3238, 3239, 3241

Notes:

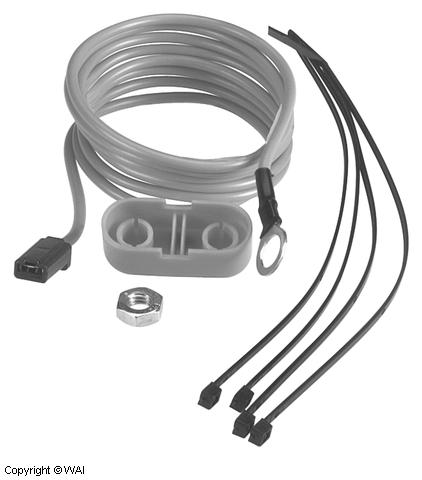

79-2114 includes the harness for connecting the solenoid relay switch on the fender to the solenoid S-spade terminal on the PMGR starter. Also included are solenoid terminal cover, bundling straps and solenoid battery terminal nut.
For PMGR starters w/ threaded post S-terminal, use 79-2114-1 kit.

Reference No. 79-2114

Detailed vehicle Application
