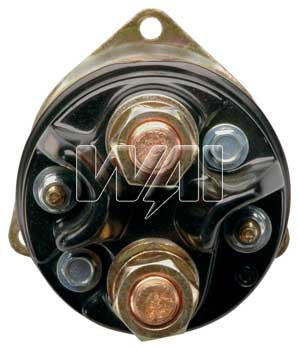

Solenoid 24 Volt, 4-Terminal, Insulated Base

Solenoid 24 Volt, 4-Terminal, Insulated Base

24 Volt, 4-Terminal, Insulated Base, Delco 37MT Series DD Starters, Batt. Term. 1/2-13, Motor Term.


For: Delco 37MT Series DD Starters

Used on: Case (1979-1999) Caterpillar Ag. & Ind. (1985-1986) Clark (1985-1986)

Replaces: Delco 1115605, D912A

Unit Nos: Case 104213A2, A169694; Caterpillar 9L2507; Cummins 3910644; Delco 10461015, 10461016, 10461018, 10461040, 1990330, 1990331, 1990332, 1990499, 1993701, 1993702, 1993707, 1993711, 1993721, 1993729, 1993732, 1993741, 1993742, 1993744, 1993771, 1993773, 1993829, 1993861, 1993862, 1993906; John Deere SE501455; Prestolite MS3-500

Lester: 6241, 6274, 6292, 6293, 6354, 6406, 6434, 6435, 6446, 6466, 6467, 6534

Dimensions:
Batt. Term. 1/2-13
Motor Term. 1/2-13
Switch Term. 10-32 Post (RH)
Grd. Term. 10-32 Post (LH)

Components:
66-1303 Cap
66-1552 Spring, Contact Return
66-1701 Movable Contact Assy.
76-1566 Stationary Contact, Batt.
76-1567 Stationary Contact, Motor
76-1569 Terminal Post, Grd. & Switch
66-1209 Solenoid Repair Kit

Features:
Accurate
Silver stationary contacts

Reference No. 7-922
