Part # 8268603 - Prestolite OE# 46-948, 46-2220, 46-2777, 46-2782, 46-4166, MHN-4001, MHN-4001A, MHN-4001B, MHN-4001S, MHN-4003, MHN-4005, MHN-4005A,

Part # 8268603 - Prestolite OE# 46-948, 46-2220, 46-2777, 46-2782, 46-4166, MHN-4001, MHN-4001A, MHN-4001B, MHN-4001S, MHN-4003, MHN-4005, MHN-4005A,

8268603

$149.95 USD
$149.95 USD
Sale Sold out
Shipping calculated at checkout.

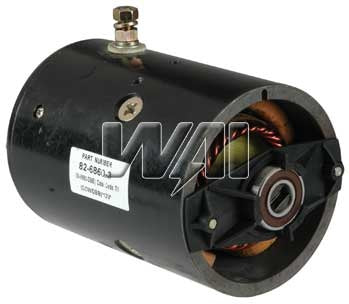

Motor - Pump 12 Volt, CCW, Slotted Shaft

Used On: Cessna, Monarch Hydraulics, MTE Hydraulics, Tommy Lifts

Replaces: Prestolite 46-948, 46-2220, 46-2777, 46-2782, 46-4166, MHN-4001, MHN-4001A, MHN-4001B, MHN-4001S, MHN-4003, MHN-4005, MHN-4005A, MUE-6001, MUE-6107, MUE-6107S, MUP-6201, MUP-6201S

Ref. No. W-9993-DBB

Dimensions:
4.5 in. Dia. Field Case
1) 5/16-24 Terminal Post

Notes:
Thru bolts at 3:00 & 9:00 positions.
Additional 1/4-20 switch mtg. holes in field case for broader coverage.
Double ball bearings.
For single ball bearing vesion use 82-6860 or 82-6860-2

Features:
100% New, TOP QUALITY, NO CORE CHARGE
Later style, 4-field coils
Double ball bearings

Reference No. 82-6860-3
note: the front plastic retainer is for shipping only and must be removed before installation
