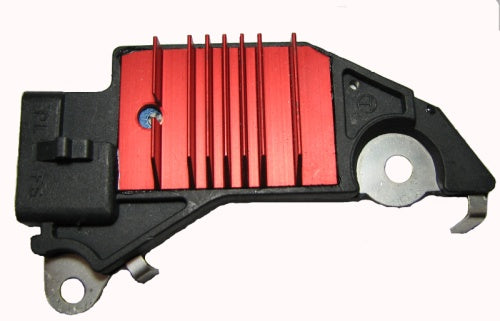

# D411SEA - Adjustable Self Exciting (one wire) Voltage Regulator for Delco GM's CS Series Alternators

# D411SEA - Adjustable Self Exciting (one wire) Voltage Regulator for Delco GM's CS Series Alternators

D411SEA

$59.95 USD
$59.95 USD
Sale Sold out
Shipping calculated at checkout.
D411SEA Self Exciting Adjustable Voltage Regulator 12 Volt, 14.7 Voltage set point (adjustable), Self Exciting
For non adjustable version of this Voltage regulator see product No. D411SE
For version that does not need the housing cut out see Part # 23012081
NOTE: Rear housing must be cut out to accommodate regulator cooling fins. Cuts can be made using a coping or jig saw and a pilot hole or using a end-mill. No Longer Has Red Finned Cover, It is now Alumnum color

For: Delco CS121, CS130, CS144 Series Alternators.


Replaces: Delco 1116411, 1116429, 1116436, 1116437, 13120469, 19009752, D677, D685, D698 (regulator case stamped: 111, 129, 136, 137, 411, 429, 436, 437)

Unit Nos: Delco 1101101, 1101106, 1101107, 1101110, 1101111, 1101114, 1101119, 1101120, 1101121, 1101122, 1101123, 1101124, 1101125, 1101126, 1101127, 1101130, 1101131, 1101135, 1101136, 1101137, 1101138, 1101139, 1101140, 1101141, 1101142, 1101143, 1101144, 1101145, 1101148, 1101149, 1101150, 1101151, 1101153, 1101154, 1101160, 1101161, 1101162, 1101163, 1101165, 1101166, 1101167, 1101168, 1101170, 1101171, 1101172, 1101173, 1101174, 1101175, 1101176, 1101177, 1101179, 1101180, 1101181, 1101182, 1101183, 1101184, 1101185, 1101186, 1101187, 1101188, 1101189, 1101190, 1101191, 1101198, 1101208, 1101209, 1101210, 1101211, 1101212, 1101213, 1101214, 1101217, 1101218, 1101223, 1101227, 1101229, 1101230, 1101231, 1101232, 1101233, 1101234, 1101235, 1101237, 1101238, 1101239, 1101246, 1101247, 1101248, 1101249, 1101250, 1101253, 1101254, 1101255, 1101259, 1101263, 1101264, 1101266, 1101267, 1101271, 1101272, 1101273, 1101274, 1101275, 1101277, 1101278, 1101291, 1101292, 1101293, 1101310, 1101311, 1101313, 1101316, 1101317, 1101318, 1101319, 1101320, 1101321, 1101327, 1101344, 1101346, 1101349, 1101454, 1101461, 1101464, 1101465, 1101466, 1101467, 1101473, 1101475, 1101483, 1101486, 1101487, 1101491, 1101493, 1101495, 1101500, 1101521, 1101531, 1101563, 1101564, 1101565, 1101567, 1101573, 1101577, 1101580, 1101582, 1101583, 1101584, 1101593, 1101595, 1101596, 1101597, 1101599, 1101600, 1101601, 1101603, 1101604, 1101605, 1101606, 1101608, 1101612, 1101614, 1101615, 1101616, 1101617, 1101618, 1101619, 1101620, 1101621, 1101623, 1101626, 1101628, 1101629, 1101630, 1101632, 1101633, 1101634, 1101635, 1101636, 1101637, 1101638, 1101639, 1101642, 1101644, 1101645, 1101646, 1101647, 1101648, 1101649, 1101650, 1101802, 1101805, 1101807, 1101810, 1101812, 1101814, 1101815, 1101819, 1101822, 1101832, 1101843, 1101846, 1101849
1102600, 1102601, 1102602, 1102603, 1102604, 1102607, 1102614, 1102615, 1102617, 1102625, 1102626, 1102629, 1102630, 1102631, 1102634, 1102637, 1102639, 1102641, 1102642, 1102643, 1102644
1105661, 1105688, 1105694, 1105697, 1105698, 1105701, 1105710, 1105711, 1105712, 1105713, 1105714, 1105715, 1105716, 1105717, 1105718, 1105719, 1105720, 1105721, 1105722, 1105723, 1105725
10430484
10479800, 10479801, 10479802, 10479805, 10479806, 10479807, 10479808, 10479809, 10479814, 10479815, 10479816, 10479817, 10479836, 10479838, 10479839, 10479844, 10479847, 10479853, 10479854, 10479855, 10479874, 10479883, 10479884, 10479891, 10479893, 10479895, 10479896, 10479897, 10479898, 10479901, 10479902, 10479903, 10479904, 10479905, 10479906,9907, 9909, 9910, 9911, 9912, 9913, 9920, 9921, 9922, 9937, 9938, 9954, 9962, 9963, 9966, 9969, 9974, 9989, 9993, 9997, 9998
10480010, 10480024, 10480025, 10480026, 10480027, 10480028, 10480035, 10480036, 10480037, 10480040, 10480067, 10480068, 10480069, 10480077, 10480082, 10480083, 10480084, 10480085, 10480086, 10480087, 10480090, 10480091, 10480092, 10480094, 10480097, 10480099, 10480104, 10480105, 10480111, 10480114, 10480115, 10480121, 10480122, 10480127, 10480130, 10480131, 10480133, 10480134, 10480136, 10480137, 10480138, 10480139, 10480157, 10480181, 10480200, 10480201, 10480202, 10480203, 10480206, 10480211, 10480255
21021447, 21022772, 21022893
21023516, 21023702, 21023724

Lester Nos:
7801, 7802, 7806, 7808, 7817, 7818, 7819, 7858, 7859, 7860, 7861, 7864, 7867, 7870, 7872, 7873, 7880, 7883, 7886, 7888, 7894, 7897; 7902, 7910, 7914, 7917, 7918, 7921, 7925, 7926, 7929, 7933, 7937, 7939, 7964, 7968, 7973, 7974, , 7984; 8103, 8106, 8107, 8112, 8114, 8119, 8130, 8137, 8153, 8154, 8163, 8165, 8167, 8169, 8171, 8172, 8173, 8179, 8198; 8203, 8204, 8214, 8215, 8217, 8218, 8219
View full details
