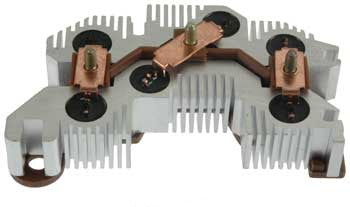

# DR5177PF - Bridge Rectifier, 60A Press Fit Diodes, 12 Volt, Delco 21SI, 22SI, 23SI, CS144 Series Alternators

# DR5177PF - Bridge Rectifier, 60A Press Fit Diodes, 12 Volt, Delco 21SI, 22SI, 23SI, CS144 Series Alternators

For: Delco 21SI, 22SI, 23SI, CS144 Series IR/EF Alternators

Notes: DR5177PF can be used to replace DR5176PF w/ 3-avalanche diodes

• 100% New Heavy Duty
• 6-60A press-fit avalanche diodes
• Crimp-weld diode connections
• Heavy copper conductors
• Saw-fin heat sinks

Also See: DR5176PF DR5177

Used On: Agco Allis (1995-2000) , Agco Gleaner (1992-2003) , Agco Star (1993-2002) , Agco White (1998-2000) , Bluebird (1992-2008) , Buhler Genesis (2002-2007) , Cadillac (1986-1987) , Caterpillar (1990-2007) , Chevrolet (1989-2003) , Consolidated Diesel (1992-1992) , Ford (1989-2008) , Freightliner (1989-2012) , GMC (1989-2003) , International (1986-2007) , John Deere (1987-2007) , Kenworth (1988-2007) , Mack (1986-2007) , Massey Ferguson (1997-2000) , Miller Applications Technology (1998-2003) , New Holland (1993-2007) , Peterbilt (1991-2012) , Sterling (1999-2007) , Volvo (1989-2007) , Western Star (1989-2007) , Willmar (1999-2007)

Replaces: Delco 10470609, D3992

Unit Nos: CAT 1214134, 9X6796; CUMMINS 3604667RX, 3604667RX, 3604667RX, 3604667RX, 3604667RX, 3604667RX, 3604667RX, 3604668RX, 3604668RX, 3604668RX, 3604668RX, 3604668RX, 3604668RX, 3675157RX, 3675157RX, 3675158RX, 3675159RX, 3675159RX, 3675223RX, 3675225RX, 3675228NW, 3675228NW, 3675228RX, 3675228RX, 3675229RX, 3675240RX, 3920615, 3920616, 3935528, 4083445; DELCO 10459037, 10459047, 10459050, 10459050, 10459050, 10459050, 10459050, 10459051, 10459051, 10459051, 10459051, 10459051, 10459189, 10459192, 10459205, 10459212, 10459216, 10459218, 10459254, 10459275, 10459277, 10459294, 10459320, 10459336, 10459456, 10459472, 10459482, 10459483, 10463069, 10463330, 10479839, 10497111, 1101239, 1101329, 1105657, 1117896, 1117899, 1117904, 1117908, 1117909, 1117911, 1117916, 1117917, 1117918, 1117919, 1117920, 1117921, 1117922, 1117924, 1117926, 1117928, 1117929, 1117933, 1117934, 1117936, 1117938, 1117943, 1117945, 1117948, 1117949, 1117952, 1117961, 1117965, 1117966, 15098392, 19010115, 19010124, 19010125, 19010126, 19010127, 19010134, 19010138, 19010147, 19010153, 19010156, 19010165, 19010168, 19010171, 19010173, 19010174, 19010176, 19010178, 19010183, 19010184, 19010191, 19010192, 19010196, 19010202, 19010210, 19010212, 19011000, 19011002, 19011003, 19011007, 19011009, 19011013, 19011016, 19020302, 19020304, 19020306, 19020309, 19020314, 19020355, 19020356, 19020357, 19020361, 19020375, 19020378, 19020380, 19020381, 19020384, 19020386, 19020388, 19020801, 19020803, 19020811, 19020812; FORD 4C4O-10300-CA, 4C4O-10300-FA, 4C4Z-10346-CA, 4C4Z-10346-FA, F6HT-10300-FA, F6HT-10300-JA, F6HZ-10346-A, F6HZ-10346-B, F6HZ-10346-B, F6HZ-10346-C, F6HZ-10346-C; FORDENG F6HT-FA, F6HT-JA; IHC 1677975C91, 1677975C92, 16807454C92; JOHNDEERE AT142246, TY6753; LETRIKASAL IA 1058, IA 1058, IA 1058, IA 1058, IA 1058, IA 1058, IA 1058, IA 1058, IA 1058, IA 1058, IA 1058; NEWHOLLAND 9824834; LESTER 7565, 7644, 7665, 7669, 7672, 7673, 7679, 7681, 7685, 7686, 7806-2, 7971, 8017, 8020, 8021, 8022, 8023, 8024, 8027, 8036, 8037, 8038, 8072, 8073, 8075, 8078, 8079, 8086, 8087, 8088, 8100, 8361, 8364, 8365, 8369, 8560, 8711
