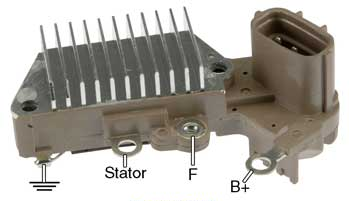

# IN452 - Voltage Regulator for Nippondenso (Denso) Alternators Used On Suzuki Vehicles - 12 Volt, A-Circuit, D-IG-L Terminals, 14.8 Vset, w/ LRC

# IN452 - Voltage Regulator for Nippondenso (Denso) Alternators Used On Suzuki Vehicles - 12 Volt, A-Circuit, D-IG-L Terminals, 14.8 Vset, w/ LRC

IN452

$39.95 USD
$39.95 USD
Sale Sold out
Shipping calculated at checkout.
Regulator 12 Volt, A-Circuit, D-IG-L Terminals, 14.8 Vset, w/ LRC

For: Nippondenso IR/IF Alternators

Used On: (2000-95) Honda, Suzuki

Replaces:
Nippondenso 126000-1970, 126000-1971, 126000-2470*
Suzuki 32500-60G10

Unit Nos:
Honda 31100-P8F-A01
Nippondenso 101211-055, 101211-072, 101211-520, 101211-785, 102211-502, 102211-507, 102211-528
Suzuki 31400-60G10, 31400-60G11, 31400-60G12, 31400-60G13, 31400-77E20, 31400-77E21, 31400-77E22, 31400-77E22

Lester Nos: 13679, 13680, 13753, 13769

WAI Ref Nos: 1-2148-01ND, 1-2148-02ND, 1-2157-01ND, 1-2239-01ND

Dimensions:
63.5mm Mtg. Length

Notes:
L-terminal is not an output terminal.
*Nippondenso 126000-2470 wo/ LRC

Features:
Transpo
