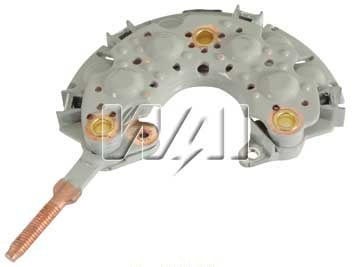

Part # INR720 - Bridge Rectifier For Nippondenso Alternators Used On Acura, Geo, Honda, Isuzu, Sterling, Suzuki, Toyota Vehicles
Part # INR720 - Bridge Rectifier For Nippondenso Alternators Used On Acura, Geo, Honda, Isuzu, Sterling, Suzuki, Toyota Vehicles
SKU:INR720
Regular price
$49.95 USD
Regular price
Sale price
$49.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Bridge Rectifier
For: Nippondenso 60-80A Alternators w/ 118mm OD Stator
Used On: (1998-83) Acura, Geo, Honda, Isuzu, Sterling, Suzuki, Toyota
Replaces:
Honda 31127-PD2-004, 31127-PD2-014
Nippondenso 021580-2160, 021580-2230, 021580-2610, 021580-2620, 021580-3690
Toyota 27357-11100, 27357-16160, 27357-63020, 27357-63060
WAI 31-8201
Unit Nos:
Nippondenso 100210-307, 100210-319, 100210-321, 100210-341
100211-100, 100211-101, 100211-102, 100211-103, 100211-104, 100211-105, 100211-106, 100211-108, 100211-109, 100211-117, 100211-118, 100211-200, 100211-201, 100211-202, 100211-203, 100211-205, 100211-206, 100211-207, 100211-210, 100211-213, 100211-214, 100211-215, 100211-216, 100211-217, 100211-246, 100211-250, 100211-255, 100211-303, 100211-304, 100211-306, 100211-309, 100211-311, 100211-315, 100211-316, 100211-317, 100211-318, 100211-322, 100211-326, 100211-330, 100211-331, 100211 -332, 100211-335, 100211-339, 100211-340, 100211-343, 100211-509, 100211-700, 100211-704, 100211-705, 100211-706, 100211-707, 100211-710, 100211-713, 100211-718, 100211-726, 100211-733, 100211 -737, 100211-743, 100211-745, 100211-746, 100211-747, 100211-750, 100211-757, 100211-780, 100211-781, 100211-782, 100211-785, 100211-797, 100211-891, 100211-971, 100211-973, 100211-977, 100211-978, 100211-979, 100211-984
101211-006, 101211-007, 101211-012, 101211-013, 101211-019, 101211 -020, 101211-025, 101211-034, 101211 101211-035, 101211-053, 101211-055, 101211-059, 101211-072, 101211-073, 101211-074, 101211-083, 101211-412, 101211-413
Lester Nos:
12205; 13229, 13240, 13241, 13277, 13294, 13319, 13322, 13326, 13339, 13392, 13397, 13398, 13409, 13433, 13455, 13456,13482, 13486, 13492, 13496, 13499, 13509, 13512, 13521, 13536, 13659, 13670, 13671, 13673, 13679, 13680, 13753; 14454, 14455, 14457, 14458, 14591, 14611, 14643, 14668, 14671, 14678, 14679, 14680, 14682, 14683, 14756, 14847, 14849, 14855, 14857, 14931, 14939, 14941, 14974
Dimensions:
100mm OD
M6 x 1.0 x 43mm Batt. Term.
Notes:
Without mtg. hole for 46-82300 grd. strap. For version with grd. strap hole and press-fit diodes use INR720P.
Features:
Best Value
8-40A diodes
For: Nippondenso 60-80A Alternators w/ 118mm OD Stator
Used On: (1998-83) Acura, Geo, Honda, Isuzu, Sterling, Suzuki, Toyota
Replaces:
Honda 31127-PD2-004, 31127-PD2-014
Nippondenso 021580-2160, 021580-2230, 021580-2610, 021580-2620, 021580-3690
Toyota 27357-11100, 27357-16160, 27357-63020, 27357-63060
WAI 31-8201
Unit Nos:
Nippondenso 100210-307, 100210-319, 100210-321, 100210-341
100211-100, 100211-101, 100211-102, 100211-103, 100211-104, 100211-105, 100211-106, 100211-108, 100211-109, 100211-117, 100211-118, 100211-200, 100211-201, 100211-202, 100211-203, 100211-205, 100211-206, 100211-207, 100211-210, 100211-213, 100211-214, 100211-215, 100211-216, 100211-217, 100211-246, 100211-250, 100211-255, 100211-303, 100211-304, 100211-306, 100211-309, 100211-311, 100211-315, 100211-316, 100211-317, 100211-318, 100211-322, 100211-326, 100211-330, 100211-331, 100211 -332, 100211-335, 100211-339, 100211-340, 100211-343, 100211-509, 100211-700, 100211-704, 100211-705, 100211-706, 100211-707, 100211-710, 100211-713, 100211-718, 100211-726, 100211-733, 100211 -737, 100211-743, 100211-745, 100211-746, 100211-747, 100211-750, 100211-757, 100211-780, 100211-781, 100211-782, 100211-785, 100211-797, 100211-891, 100211-971, 100211-973, 100211-977, 100211-978, 100211-979, 100211-984
101211-006, 101211-007, 101211-012, 101211-013, 101211-019, 101211 -020, 101211-025, 101211-034, 101211 101211-035, 101211-053, 101211-055, 101211-059, 101211-072, 101211-073, 101211-074, 101211-083, 101211-412, 101211-413
Lester Nos:
12205; 13229, 13240, 13241, 13277, 13294, 13319, 13322, 13326, 13339, 13392, 13397, 13398, 13409, 13433, 13455, 13456,13482, 13486, 13492, 13496, 13499, 13509, 13512, 13521, 13536, 13659, 13670, 13671, 13673, 13679, 13680, 13753; 14454, 14455, 14457, 14458, 14591, 14611, 14643, 14668, 14671, 14678, 14679, 14680, 14682, 14683, 14756, 14847, 14849, 14855, 14857, 14931, 14939, 14941, 14974
Dimensions:
100mm OD
M6 x 1.0 x 43mm Batt. Term.
Notes:
Without mtg. hole for 46-82300 grd. strap. For version with grd. strap hole and press-fit diodes use INR720P.
Features:
Best Value
8-40A diodes
