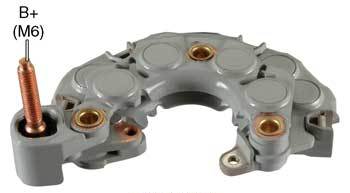

# QS17252034 - Rectifier, 12 Volt, For Denso Alternators w/118mm OD Stator

QS17252034 - Rectifier, 12 Volt, For Denso Alternators w/118mm OD Stator

For: Denso 75-117A ER/IF, IR/IF Alternators w/118mm OD Stator

Dimensions:

• 103mm OD
• M6 x 1.0 x 25mm Battery Terminal

Notes: Without mounting hole for ground strap. Similar to INR403P except INR403P w/mounting hole for ground strap.

Features:

• 100% New
• 8 50A press-fit diodes
• Welded diode terminations
• Copper heat sinks

Also See: INR403P, INR729P

Used On: Acura (1999-2006), Asuna (1993-1993), Chrysler (1988-2000), Dodge (1988-2001), Eagle (1993-1997), Geo (1992-1993), Honda (2002-2005), Isuzu (1992-1993), Jeep (1991-2000), Jeep - Europe (1993-1998), Plymouth (1988-2000), Toyota (1990-1999), Toyota - Europe (1989-1999), Volvo (1991-1992)

Replaces: Denso 021580-3640, 021580-3680, 021580-4660, 021580-4670, 021580-4840, 021580-5270, Isuzu 8-97046-414-0, 8-97070-808-0, Toyota 27357-74140, 27357-74260, 27357-74290

Unit Nos: Acura 31100-P8E-A01, 31100-P8E-A01RM, 31100-P8E-A02, 31100-PRB-003, 31100-PRB-003RM, 31100-PRB-013, CJV33, CJX68, Bosch 8145, Chrysler 38522261, 4364944, 4557301, 4609034, 4609090, 4609093, 4609415, 4686098, 4727220, 4808034, 5227669, 5233416, 5233418, 5233449, 5233672, 5233673, 5233949, 5233973, 5234026, 5234028, 5234029, 5234031, 5234032, 5234201, 5252539, 53008646, 53008647, 56005684, 56005684AB, 56005685, 56005685AB, 56005685AC, 56007912, 56026811, 56026936, 56027912, 56027912AB, 56041822AA, 59005685, R5233449, R5234031, R5252539, RL027912AB, RL041822AA, Denso 100211-3380, 100211-3640, 100211-8230, 100211-8320, 100211-8321, 100211-8370, 100211-8371, 100211-8530, 100211-8590, 100211-8810, 100211-8820, 100211-8840, 100211-8841, 100211-8870, 100211-8980, 101211-5090, 101211-5220, 101211-5460, 101211-5550, 102211-1330, 102211-1331, 102211-2670, 102211-2680, 102211-2870, 102211-9060, 121000-3000, 121000-3100, 121000-3300, 121000-3310, 121000-3330, 121000-3340, 121000-3360, 121000-3370, 121000-3380, 121000-3390, 121000-3400, 121000-3410, 121000-3430, 121000-3440, 121000-3450, 121000-3452, 121000-3460, 121000-3470, 121000-3480, 121000-3490, 121000-3490, 121000-3510, 121000-3520, 121000-3521, 121000-3523, 121000-3530, 121000-3531, 121000-3570, 121000-3580, 121000-3600, 121000-3610, 121000-3620, 121000-3630, 121000-3660, 121000-3670, 121000-3671, 9712109-338, 9761211-509, GM 97029986, Honda 31100-P8E-A020, 31100-PRA-003, CJX67, Isuzu 2911232260, 2911233080, 8944410681, 8944610911, 8970299860, 8970299861, 8970638121, 8976299861, Komatsu 600-861-3420, Lucas LRA02132, LRA03274, Toyota 27060-74130, 27060-74150, 27060-74220, 27060-74280, 27060-74290, 27060-74291, 27060-74300, 27060-74320, 27060-74390, 27060-74390-84, 27060-74430, 27060-74460, Valeo 437751, Volvo 1398327, 1398327-0, 1398327-5, Lester 11837, 13103, 13184, 13185, 13245, 13252, 13256, 13305, 13306, 13307, 13312, 13321, 13338, 13341, 13353, 13354, 13419, 13424, 13440, 13442, 13443, 13444, 13454, 13498, 13501, 13556, 13578, 13593, 13705, 13822, 13823, 13834, 13965, 13977, 22798
