# QS20201007 - Pulley, 2-Groove V-Belt, 22.23mm Bore, 114mm OD, 13mm Belt, For Caterpillar and Kenworth Alternators

# QS20201007 - Pulley, 2-Groove V-Belt, 22.23mm Bore, 114mm OD, 13mm Belt, For Caterpillar and Kenworth Alternators

QS20201007

$49.95 USD
$49.95 USD
Sale Sold out
Shipping calculated at checkout.

QS20201007 - Pulley, 2-Groove V-Belt, 22.23mm Bore, 114mm OD, 13mm Belt, For Caterpillar and Kenworth Alternators

For: Caterpillar and Kenworth Alternators

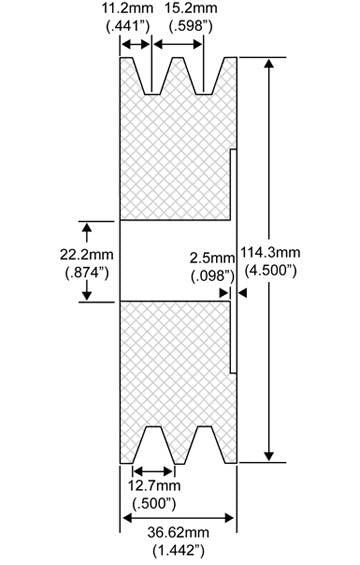

Dimensions: 22.23mm Bore x 114.3mm OD x 13mm Belt

Features: 100% New Machined pulley cut from cold-rolled steel. 4mm keyway.

  • BELT WIDTH 13mm
  • CENTER OF GROOVE TO REAR 0.441"
  • CENTER OF GROOVE TO REAR 11.200mm
  • CENTER TO CENTER GROOVE 0.598"
  • CENTER TO CENTER GROOVE15.200mm
  • GROOVE TYPE V-Groove
  • ID 0.874"
  • ID 22.200 mm
  • KEYWAY WIDTH 0.157"
  • KEYWAY WIDTH 4mm
  • NUT RECESS 0.098"
  • NUT RECESS 2.500mm
  • OD 114.300 mm
  • OD 4.500"
  • PULLEY TYPE Solid
  • THICKNESS 36.620 mm
